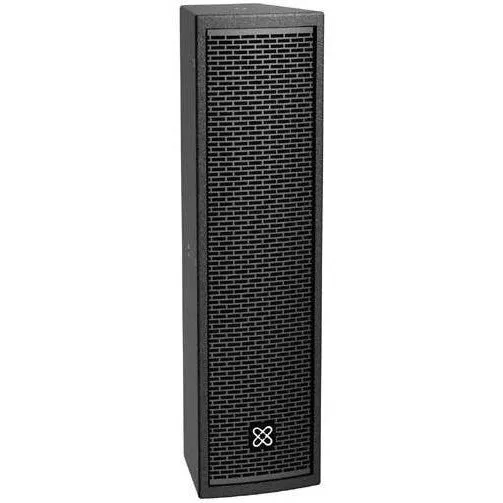

The CPL 4L can be used for both fixed installations and portable live performances. It is ideal for public address, monitoring and background sound reinforcement applications typically found in houses of worship, clubs, bars/restaurants, retail outlets, as well as educational institutions and corporate conference rooms or anywhere high-quality discrete audio distribution is required.
The CPL 4L features four 3-inch full-range neodymium drivers with a 0.75-inch voice coil. The speaker’s dispersion pattern measures 90° horizontally and 25° vertically, providing a wide but well-controlled sound coverage. The speaker’s impedance is 8 ohms, making it easy to daisy-chain. Connection is via either two loop-type 4-pin twist-lock connectors or a single 4-pin Euroblock connector.
The CPL 4L cabinet is constructed from high-quality 12mm thick plywood with robust mechanical and low-resonance electro-acoustic properties, and a reinforced steel grille with acoustic foam to provide maximum protection for the internal components. The loudspeaker is equipped with a total of 7 threaded suspension points, providing a variety of mounting options for various applications. Available in durable black and white finishes.
Specifications
- Compact passive array loudspeaker
- Four 3" full-range drivers with neodymium magnets, 0.75" voice coil.
- Continuous power: 120 W.
- Nominal resistance: 8 Ohm
- Coverage diagram (HxW): 90° x 25°
- Connectors: 2 x 4-pin twist locks and 4-pin Euroblock
- 2 /2- Pass-through
- Construction made of 12mm thick plywood
- Sealed box system
- 7 M8 suspension points (1 top, 1 bottom, 1 each side, 3 rear)
- Various mounting options
- Textured polyurea paint
